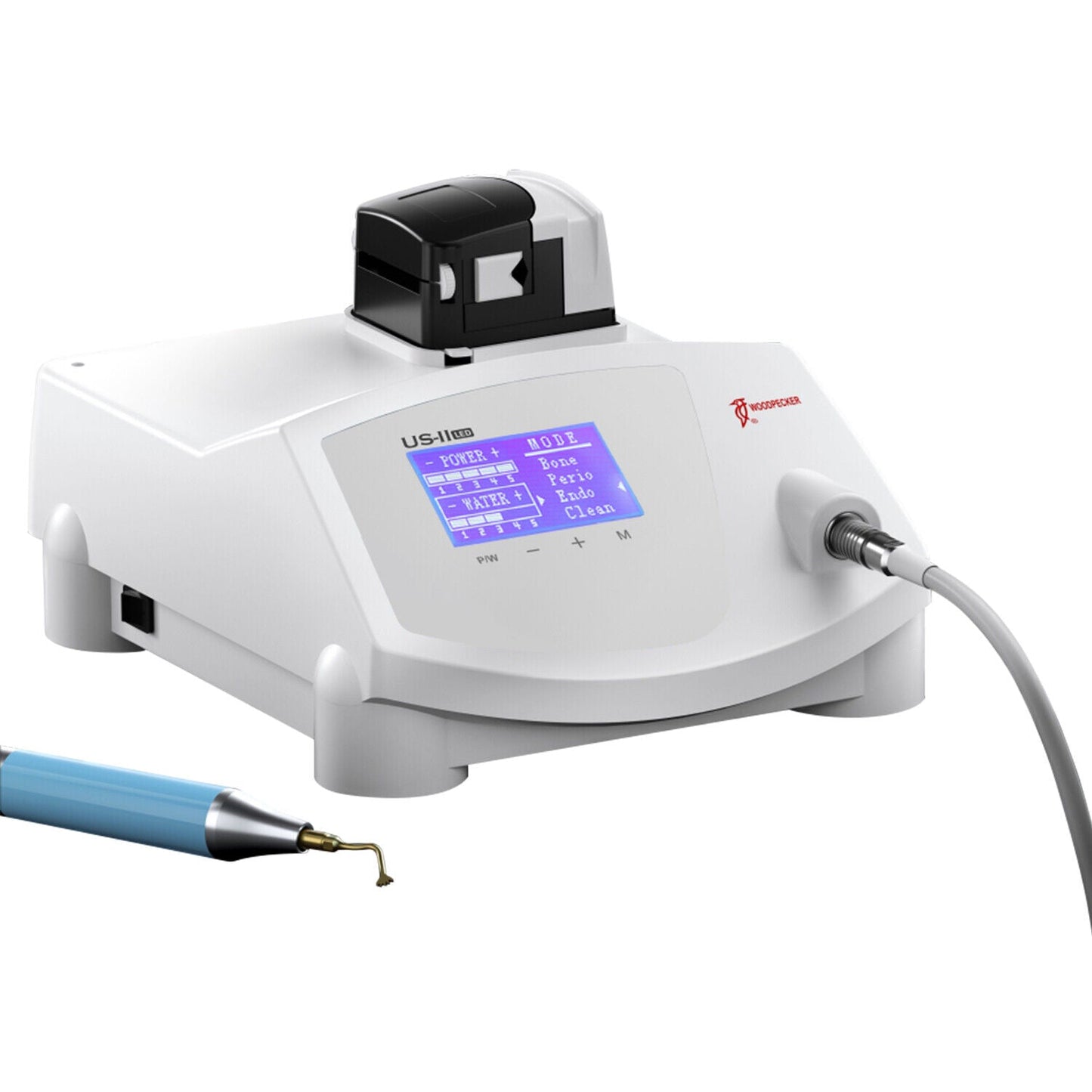

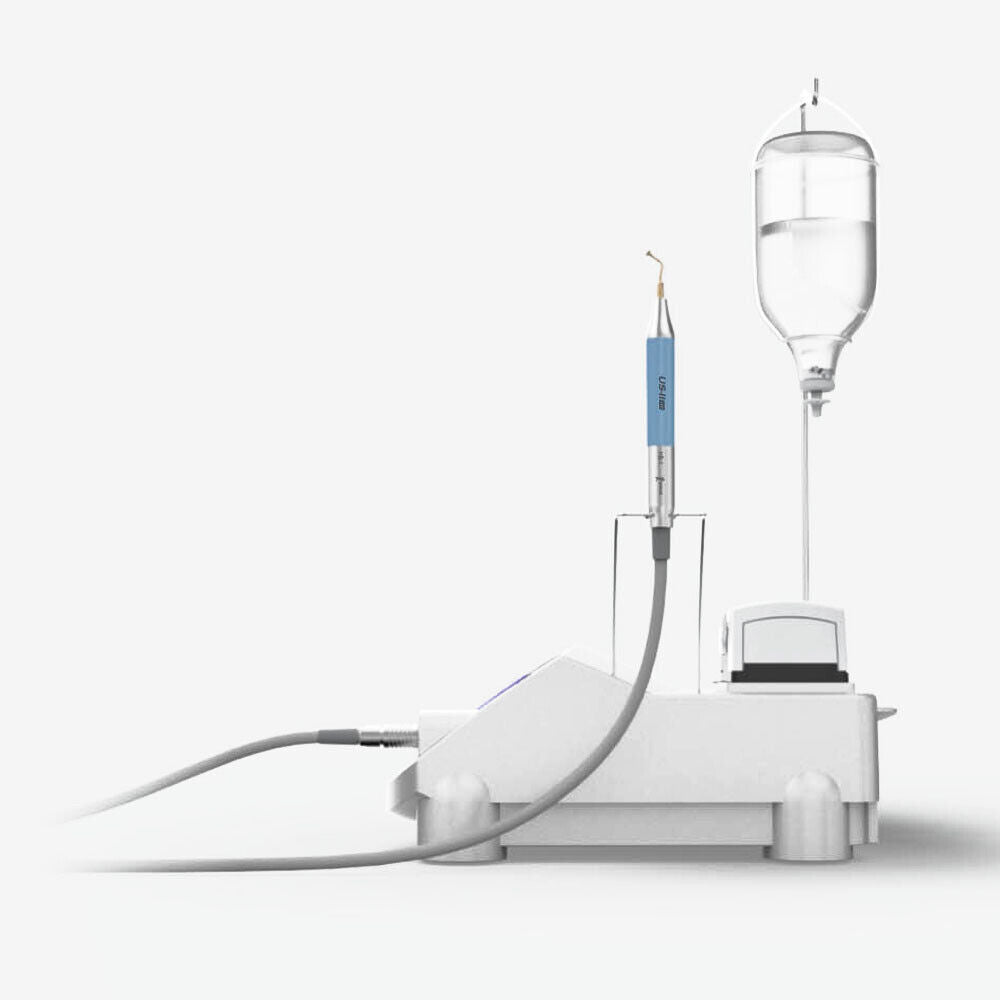

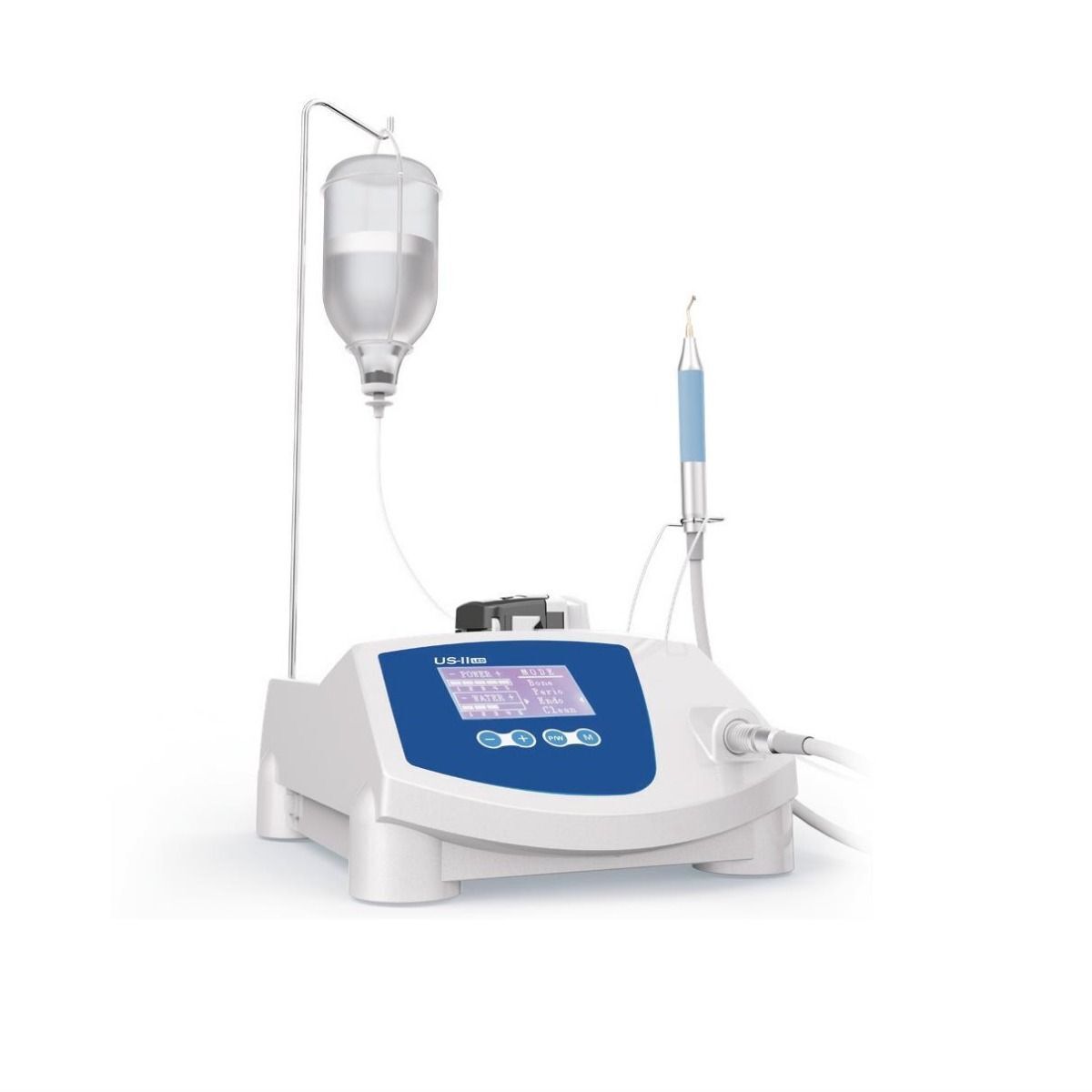

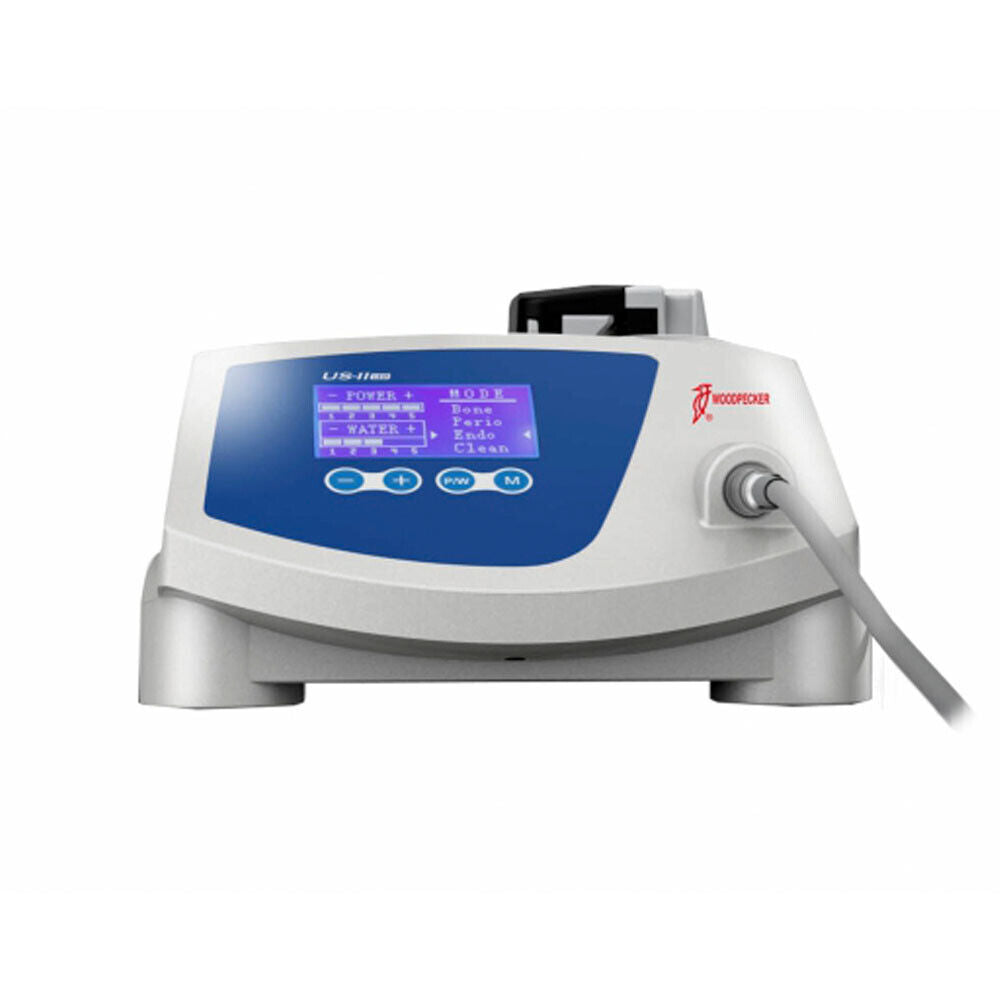

Woodpecker US-II LED Ultrasurgery Piezo Bone Surgery

Woodpecker Dental US-II LED Ultrasurgery Piezo Bone Surgery Ultrasonic Bone Cutting System 2 LED handpiece 14 Tips. Autoclavable Handpiece and Tips. Minimally Invasive Incision. Maximum Safety to Soft Tissue. Reliable and Efficient. Four Modes Meet Your Needs. One Year Warranty.

Features

• Minimally Invasive Incision.

The tips vibration accuracy is 20-200μm micron, the minimum incision is only 3.5mm*0.5mm. The postoperative recovery is fast, due to operation area is small.

• Provide Maximum Safety to Soft Tissue.

The vibration frequency is 24-29KHZ, which can effectively cut bone tissue and reduce the risk of soft tissue injury.

• Easy Operation.

For different treatment needs, there are four modes for choosing: bone function, periodontal function, root function, clean function.

• More Safety.

Handpiece, cable, tip holder, working tip and torque wrench can be autoclaved under the high temperature of 135°C and the pressure of 0.22Mpa.

• Newly Developed Handpiece.

Developed handpiece and tip are more compatible and stable. The LED Handpiece insure better vision.

• Equipped with Professional Kits.

Come with 2 LED handpieces and 14 tips, providing a wide choice for application of your clinical practice.

Intended Use

The US-II (LED) is a piezoelectric device for bone surgery that enables osteotomy and osteoplasty techniques to be applied to in almost any anatomical situation. This equipment can be used in the following fields:

• Oral surgery;
• Orthopedic surgery;
• Maxillofacial surgery;
• Cosmetic surgery;
• Neurosurgery;
• Otolaryngology

The function of bone is mainly used for dental surgery, such as dental extraction, bone grafting, osteogenic distraction, endodontic surgery, alveolar nerve decompression, cyst removal, osteoplasty, bone harvesting techniques and periodontic surgery. etc..

Technical Parameter

• Power input: 110V~ 50Hz/60Hz
• Main unit input: 24V~ l.3A
• Output power: 5W ~ 35W
• Intermittent operation: Max T_on 60s, T_off 10s
• Frequency: 24kHz ± 36kHz
• Main unit weight: 6.8lbs (3.1kg)
• Dimensions: 13"x10"x6.6" (330×254×167mm)

Packing List

• Main Unit *1
• Peristaltic pump *1
• Power cord *1
• Hook *1
• Foot Switch *1
• LED Handpiece *2
• Handpiece holder *1
• Tip Holders *2
• Pump tubing *8
• Connector for pump tubing *4
• Steriliza box *1
• Torque Wrench *2
• Single package *2
• Tip book *1
• Silicone handle holder *2
• Tips *14

• Normal saline connector *2
• Instruction manual *1
• Warranty card *1
• Quality certificate *1
• Assembly card *1
• Packing list *1
• Complimentary article: LED lamp (only for US-II LED) *1

Warranty

One year warranty (not including customer damages). Due to the nature of the medical equipment, we don’t offer return on this product if it has been open box and used. We will repair it for free if it’s product problem and still within warranty.
