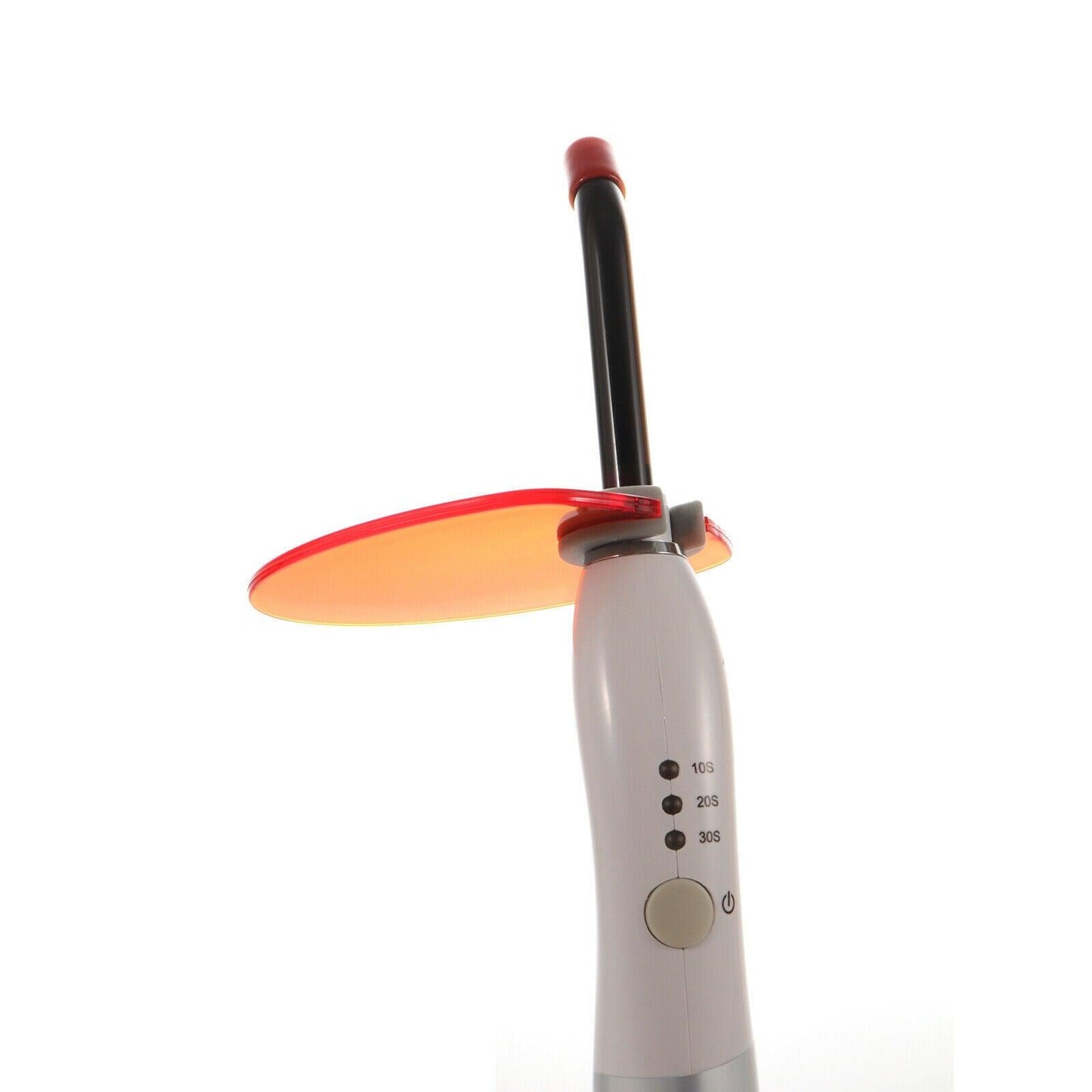

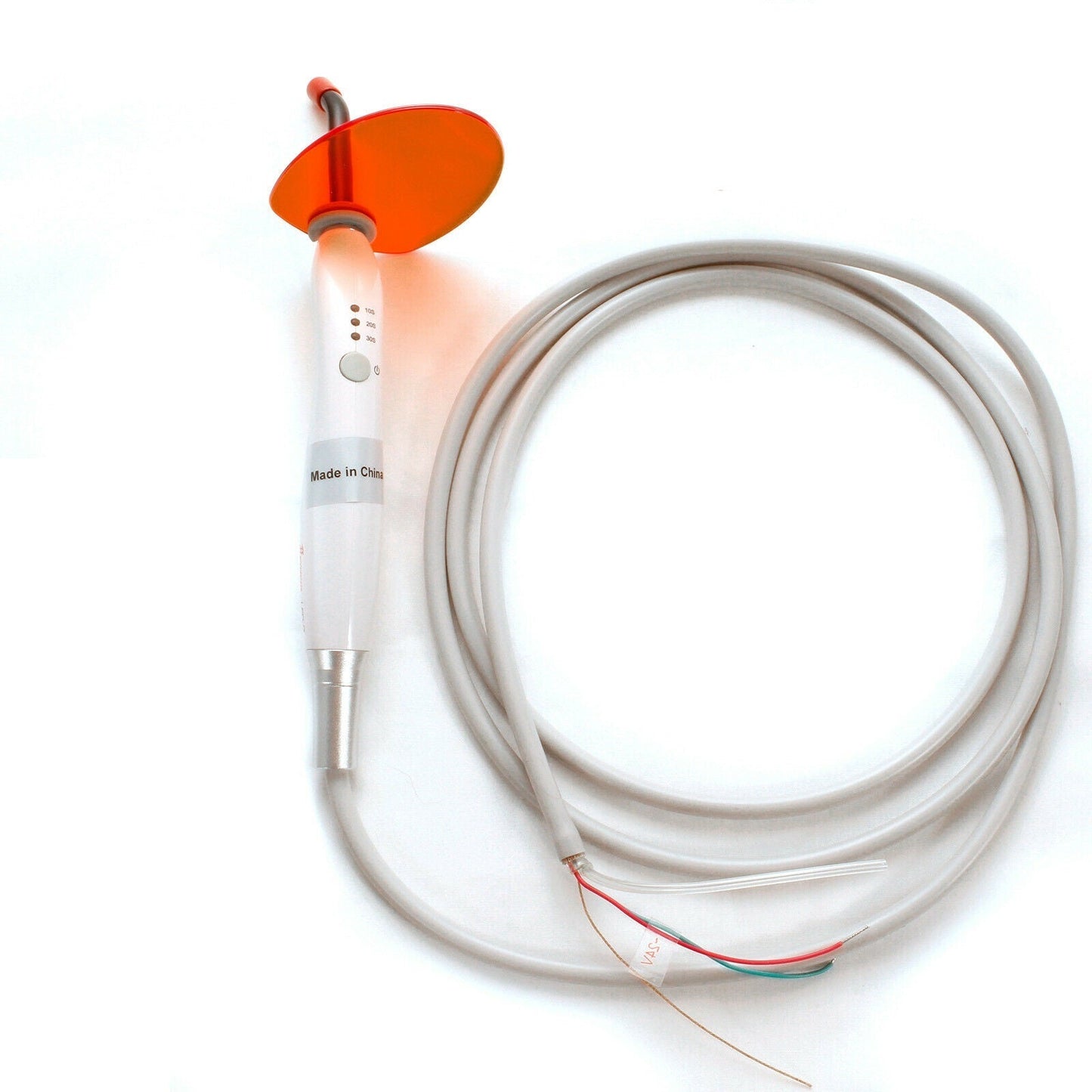

Woodpecker LED Q Built-in Curing Light

Original Woodpecker Dental LED Q Built-in Curing Light Lamp. Connect to Dental Unit. Three Time setting: 10s, 20s, 30s. 360 Degree Rotary. Resin not less than 4mm in 10 seconds. Wave Length 420nm-480nm. 1200mW/cm2 Light Intensity. Ergonomics Design. FDA Approved. One Year Warranty.

Features

• FDA and CE0197 Certificated.
• Sealed, connect to dental unit.
• 3W high power blue light LED.
• 360 Degree rotary head, extend the possibility.
• Ergonomics design, optimize the hand-grip use.
• This device can cure composite resin not less than 4mm in 10 seconds.
• LED Q adopts the principle of ray radiation to solidify the light-sensitive resin by shooting at it in a short time.
• This device is used to restore teeth and solidify material for whitening teeth.

Technical Parameter

• Time setting: 10s, 20s, 30s
• Working mode: Full
• Power input: : 100V to 240V, 50Hz/60Hz, 0.4A Max
• Light intensity: 1000mW/cm2~1200mW/cm2
• Wave length : 420nm-480nm
• Illumination range: Diameter 8mm
• Net weight: 4.5oz (127g)
• Dimensions: 9.8”×1”×1” (248×26×26.5mm)

Packing List

• Main unit *1
• Optical fiber *1
• Light hood *1
• Instruction book *1
• Warranty card *1
• Product certificate *1

Warranty

One year's free repair for the whole unit from the date of purchase. Lifetime maintenance.

Direction to Use

• Time setting: 10s, 20s, 30s.
• Press the button to turn on the device.
• After turning on the device, keep pressing the button in 1second, then the indicator light scroll shines. Now you can choose 10s, 20s, and 30s working time
• The device will turn off after 2 minutes idle.
