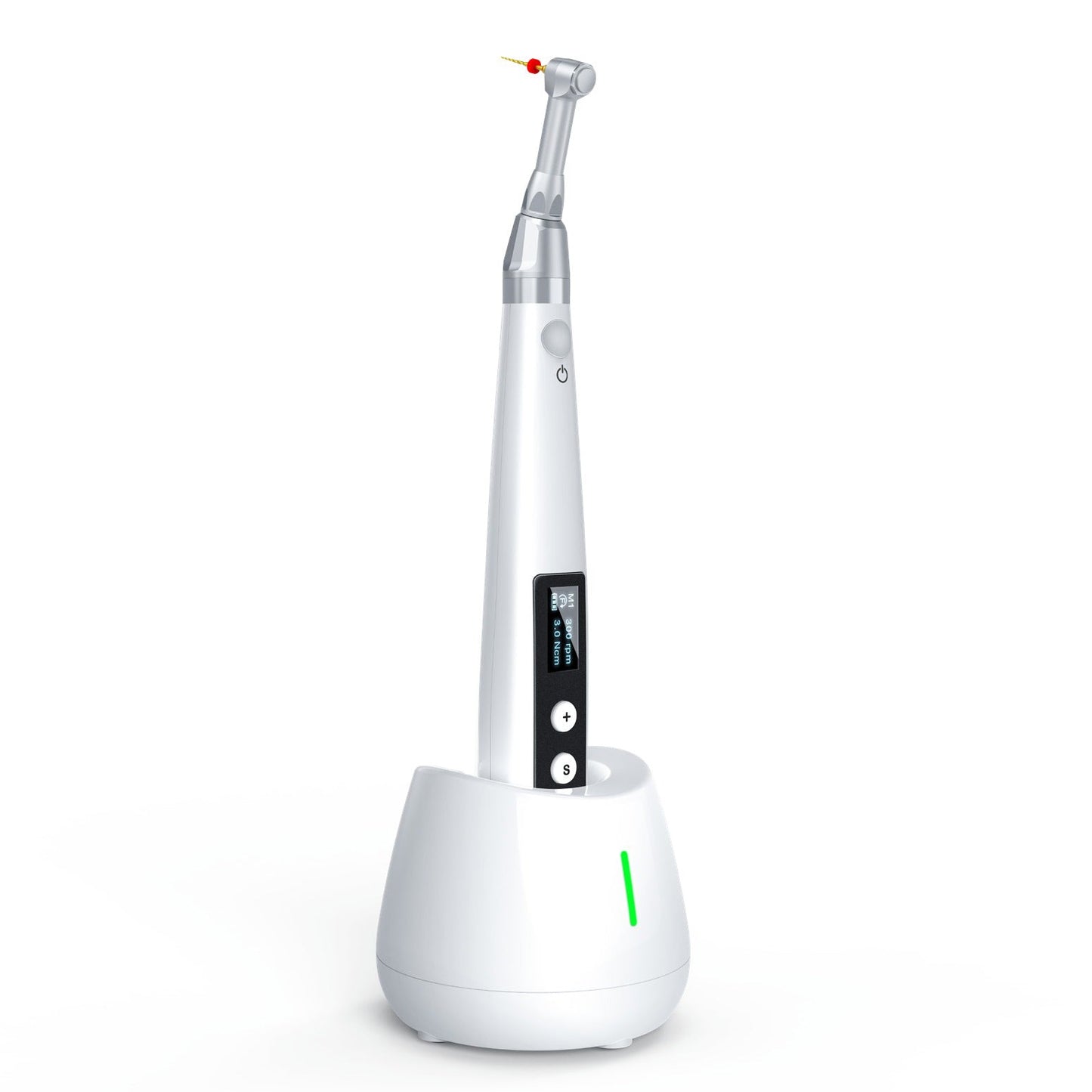

Woodpecker Dental E-COM Plus Cordless Endo Motor

Original Woodpecker Dental Endodontic E-COM Plus E-COM+ Cordless Endo Motor Handpiece, Premium Latest Model, Effectively Prevent Needle Breakage, OLED-Screen, Maximum Compatibility, 9 User-defined Modes with Reciprocating Mode, Endodontic Root Canal Molding and Cleaning in Treatment, One Year Warranty.

Overview

• E-COM + is mainly used in EndodoAdopt real-time feedback technology & dynamic torque control,realizing automatic reverse,effectively preventing fracture.

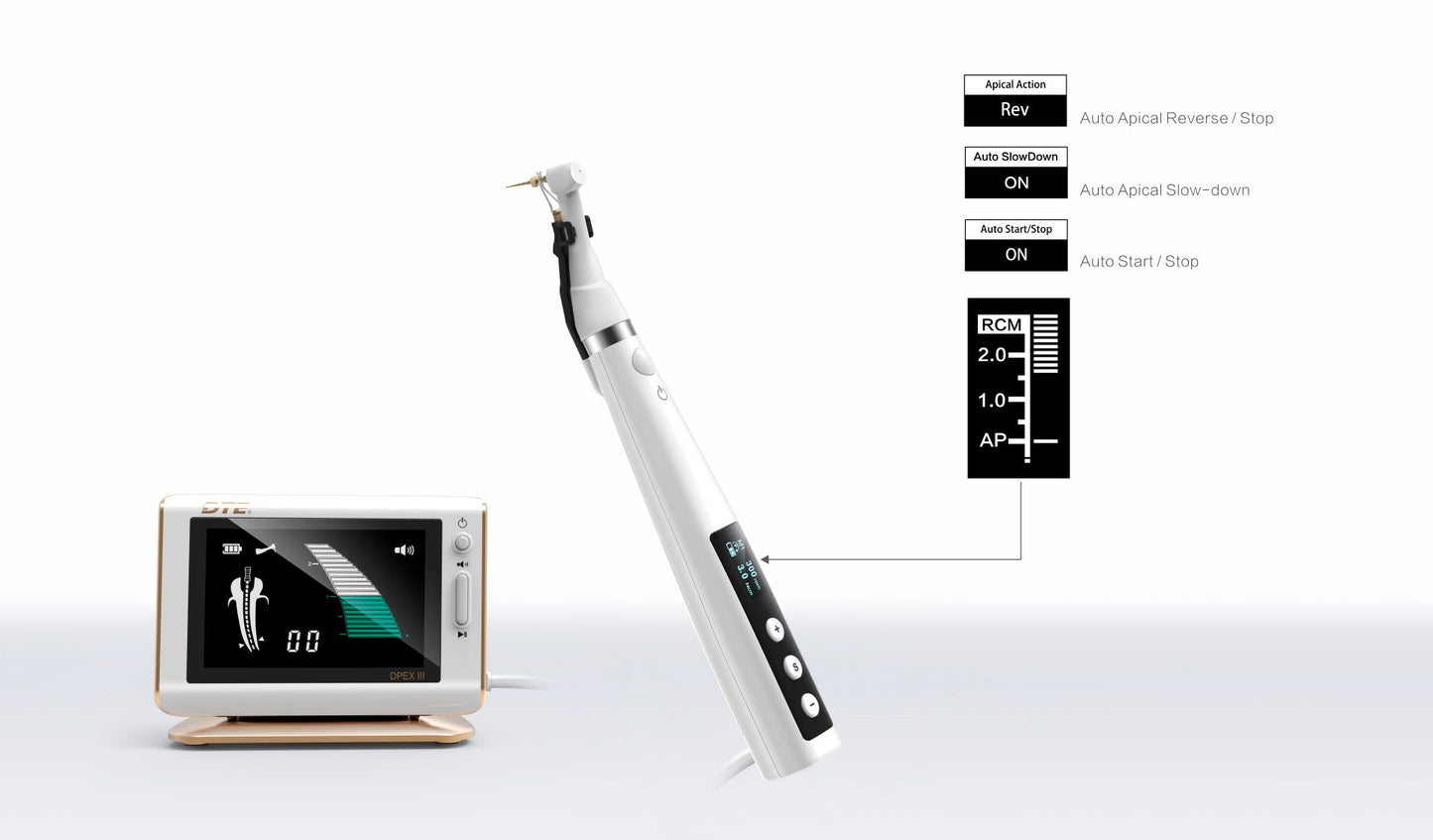

• E-COM + can be connected to the matched Apex locator to add an apex locator function. By connecting the E-COM + to the matched Apex locator, the position of the file tip inside the canal can be monitored during the procedure and many automatic functions such as Auto Apical Reverse can be activated.

Features

• Effectively Prevent Needle Breakage

Adopt real-time feedback technology & dynamic torque control,realizing automatic reverse,effectively preventing fracture.

• Preset Various File Systems

Preset various file systems so that the dentist can directly choose the file system that they need,which brings dentists convenience while they need to use different kinds of files.

• Maximum Compatibility

Wide torque & speed range make it adapt to various file systems such as FKG,XP-endo,and Shaper in the market.
Recommended speed is 800-1000rpm.
Recommended maximum torque setting for dentsply protaper gold is 5N.cm.

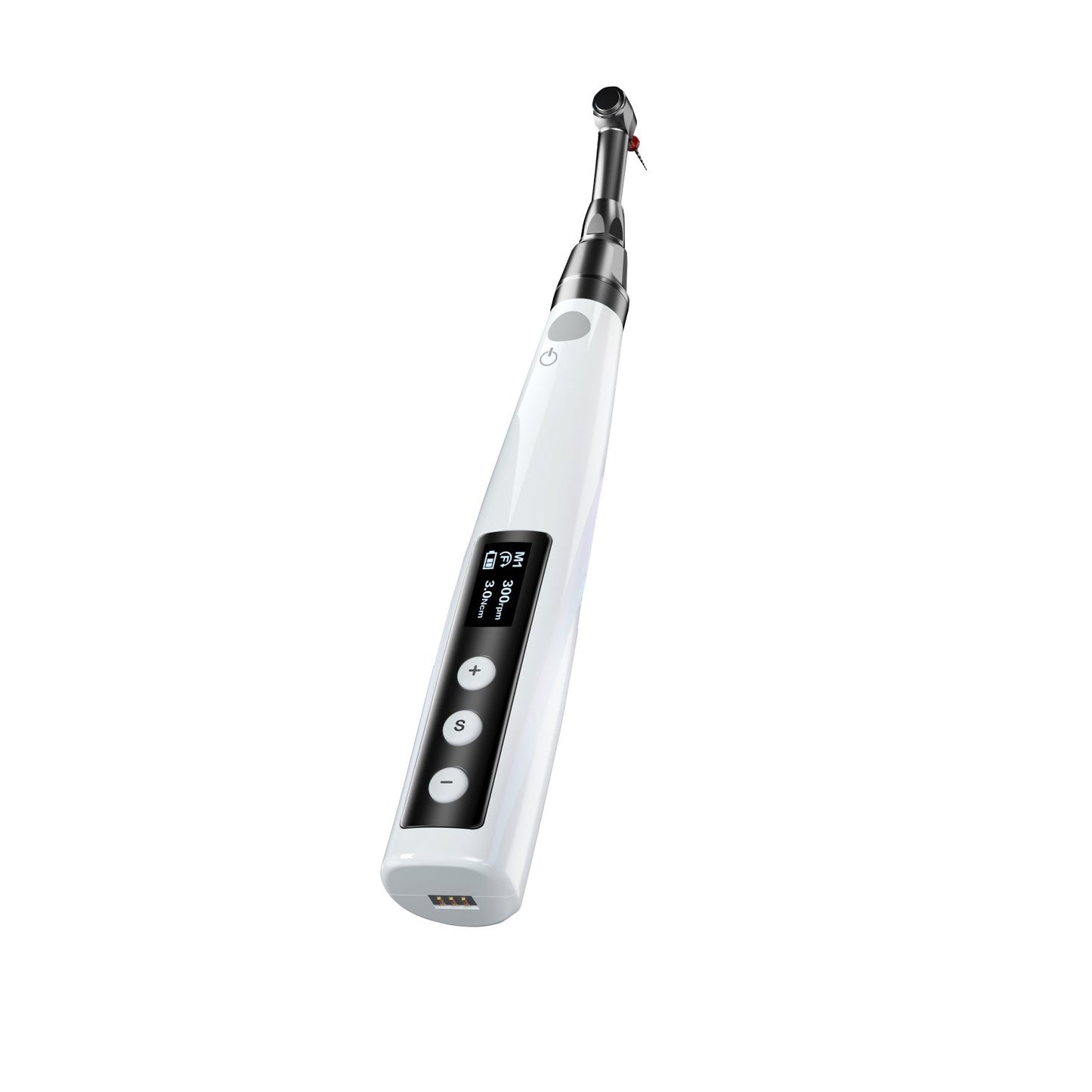

• Cordless Handpiece

Flexible use & easy storage without tail cord Human friendly design brings better holding feeling.

• All-angle OLED Screen

Without visual angle limit,clear display can be guaranteed even under strong light.
Available display of speed,torque, and Battery Consumption

• Customization 9 user-defined modes

Storage of 9 user-defined modes allows invocation at any time.
Under each mode,continuous motion,reciprocating motion,and reverse motion are for options.
Torque and speed is adjustable.

• Imported Motor 15.5:1

Reduction ratio endows strong power and efficient cutting.
Durable planet gear gearbox prolongs service life of device

• Nimble & Autoclavable Contra-angle

Contra-angle can be autoclaved to avoid cross-infection.Adjustable angle make it available for different teeth positions small & exquisite head provides unobstructed views.

• Automatic Torque Calibrating

Choose Torque Calibrating mode to automatically calibrate torque,reducing the torque fluctuation caused by contra-angle replacement or sterilization under high temperature and high pressure

Technical Parameter

• Battery: Lithium battery in handpiece, 3.6V /750mAh
• Power input: ~100V-240V, 50Hz/60Hz, 0.4A(Max)
• Power output: DC5V/1A
• Torque: 0.6Ncm-5.0Ncm(6mNm ~ 50mNm)
• Rotate speed: 100rpm~1000rpm

Environment Parameters

• Environment temperature: +5℃ ~ +40℃
• Relative humidity: 30% ~ 75%
• Atmospheric pressure: 70kPa ~ 106kPa

Packing List

• Charging base *1
• Motor handpiece *1
• Contra-angle *1
• Lubricator *1
• Adapter *1
• Disposable insulation sleeves *1
• Qualified certificate *1
• Instruction manual *1
• Warranty card *1

The Contra Angle Instructions

• Before the first use and after treatments, please clean and disinfect contra-angle with disinfectant of neutral PH value.
• After disinfection, lubricate it with specific cleaning oil.
• Finally, sterilize it under high temperature and high pressure (134℃, 0.2MPa~0.23MPa).

Warranty

One year's free repair for the whole unit from the date of purchase. Lifetime maintenance.

*Please Notice

The contra-angle can only be used cooperatively with this device. Otherwise the contra-angle will be damaged.
