Woodpecker Dental Ultrasonic Scaler UDS-L LED

Name: Woodpecker Dental Ultrasonic Scaler UDS-L LED
Brand: Woodpecker
SKU: WP16063-105
Price: 315.23 USD
Availability: InStock

$315.23 USD

Sale Sold out

Product variants

Quantity

UDS-L has scaling, perio and endo functions.
Automatic frequency tracking ensures that the machine always works on the best frequency and performs more steadily.

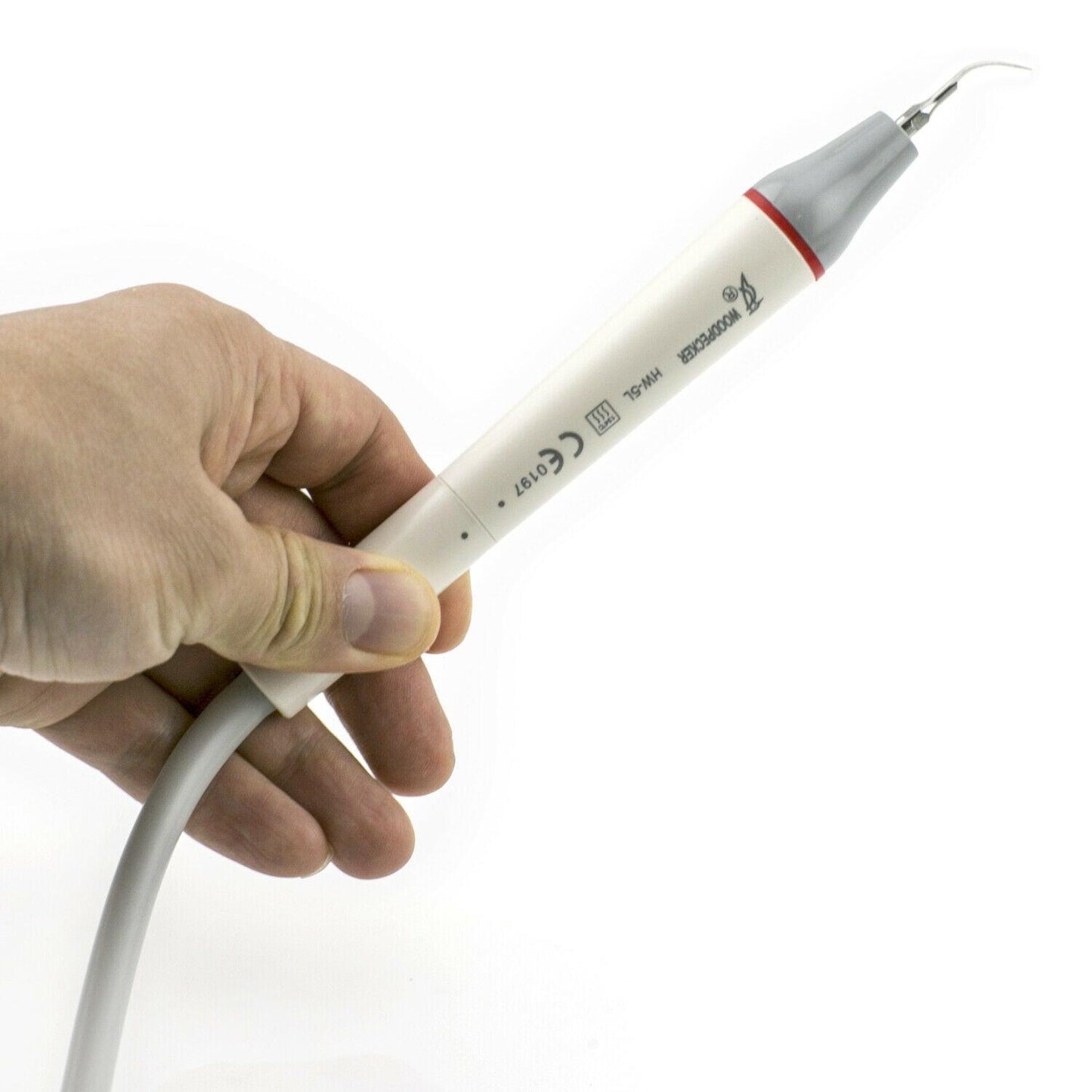

The handpiece is detachable and can be autoclaved to the high temperature of 135℃and pressure of 0.22MPa.
Digital controlled, easy operation and more efficient for scaling.
The curing light can be used along with UDS-L, utilizing its ultrasonic power to provide electricity for the curing light. More convenient and practical.
The scaler is composed of electrocircuit, water way and ultrasonic transducer.
UDS-L is used for the dental calculus elimination and root canal treatment.

Power source input: 110V, 50Hz, 150mA
Main unit input: 24V - 1.3A
Output primary tip vibration excursion: ≤100um
Output half-excursion force: ＜2N
Output tip vibration frequency: 28kHz ± 3kHz
Output power: 3W to 20W
Main unit fuse: T 1.6AL 250V
Power source fuse: T0.5AL 250V
Water pressure: 0.1bar to 5bar (0.01MPa to 0.5MPa)
Weight of main unit: 0.73kg
Weight of power source: 1.2kg
Dimension: 190mm x 125mm x 60mm
Operating mode: Continuous operation
Type of protection against electric shock: Class II
Degree of protection against electric shock: Type BF applied part
Applied part of the equipment: handpiece and tip
Degree of protection against harmful ingress of water: Ordinary equipment (IPX0), Protection degree against water (used on the foot switch): IPX1
Degree of safety of application in the presence of a Flammable Anesthetic Mixture with air or Oxygen or Nitrous Oxide: Equipment not suitable for being used in the presence of a flammable anesthetic mixture with air or with oxygen or nitrous oxide
Net weight: 3kg
Gross weight: 5kg
Packing size: 440*350*150mm

The equipment should be handled carefully and lightly. Be sure that it is far from the vibration, and is installed or kept in a cool, dry and ventilated place
Don't store the machine together with the articles that are combustible, poisonous, caustic, or explosive
This equipment should be stored in a room where the relativce humidity is ≤80%, atmospheric pressure is 50kPa to 106kPa, and the temperature is -10℃ to +50℃
If the machine is not used for a long time, please make it get through to the power and water once per month for five minutes
Environment temperature: 5℃ to 40℃
Relative humidity: ≤80%
Atmosphere pressure: 70kPa to 106kPa
