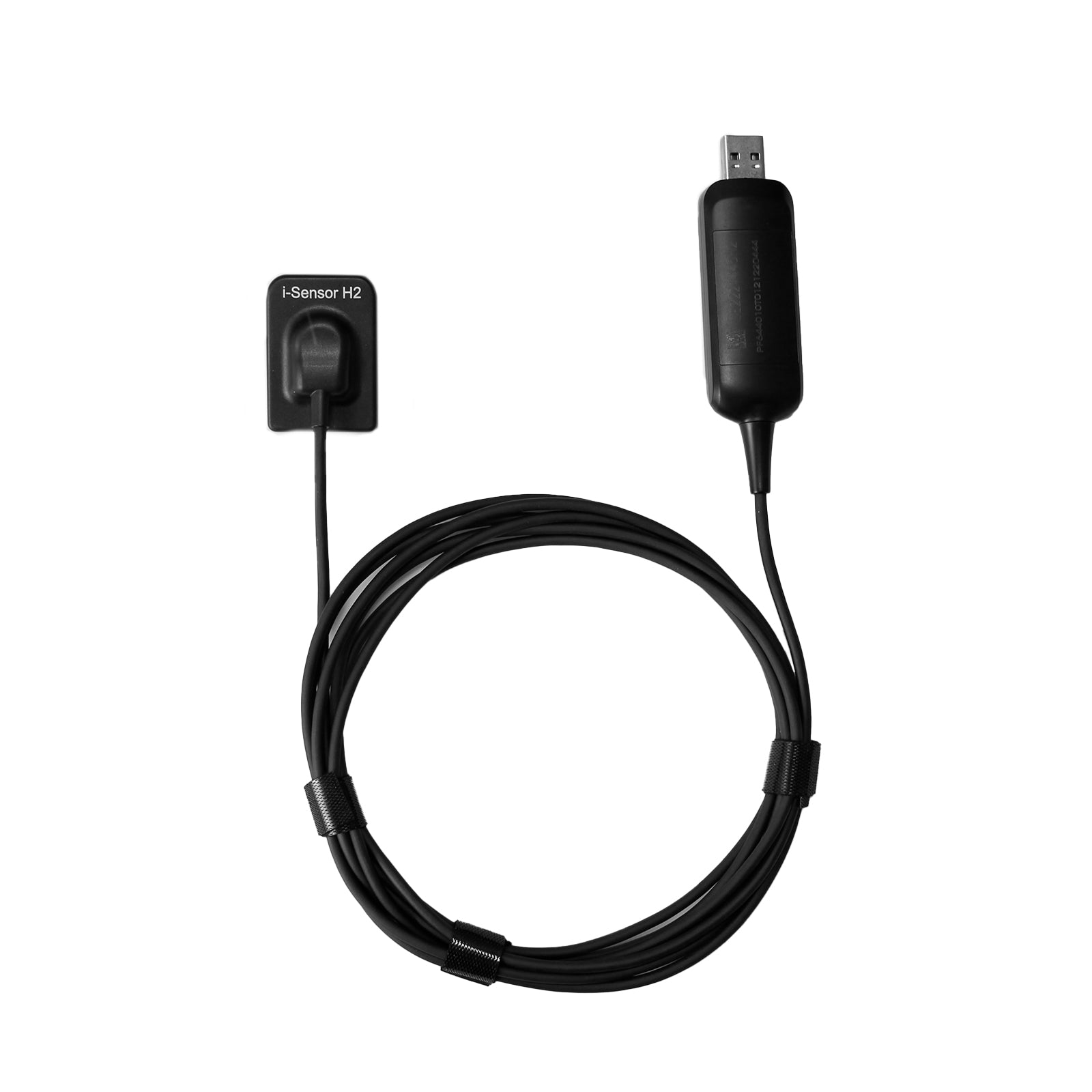

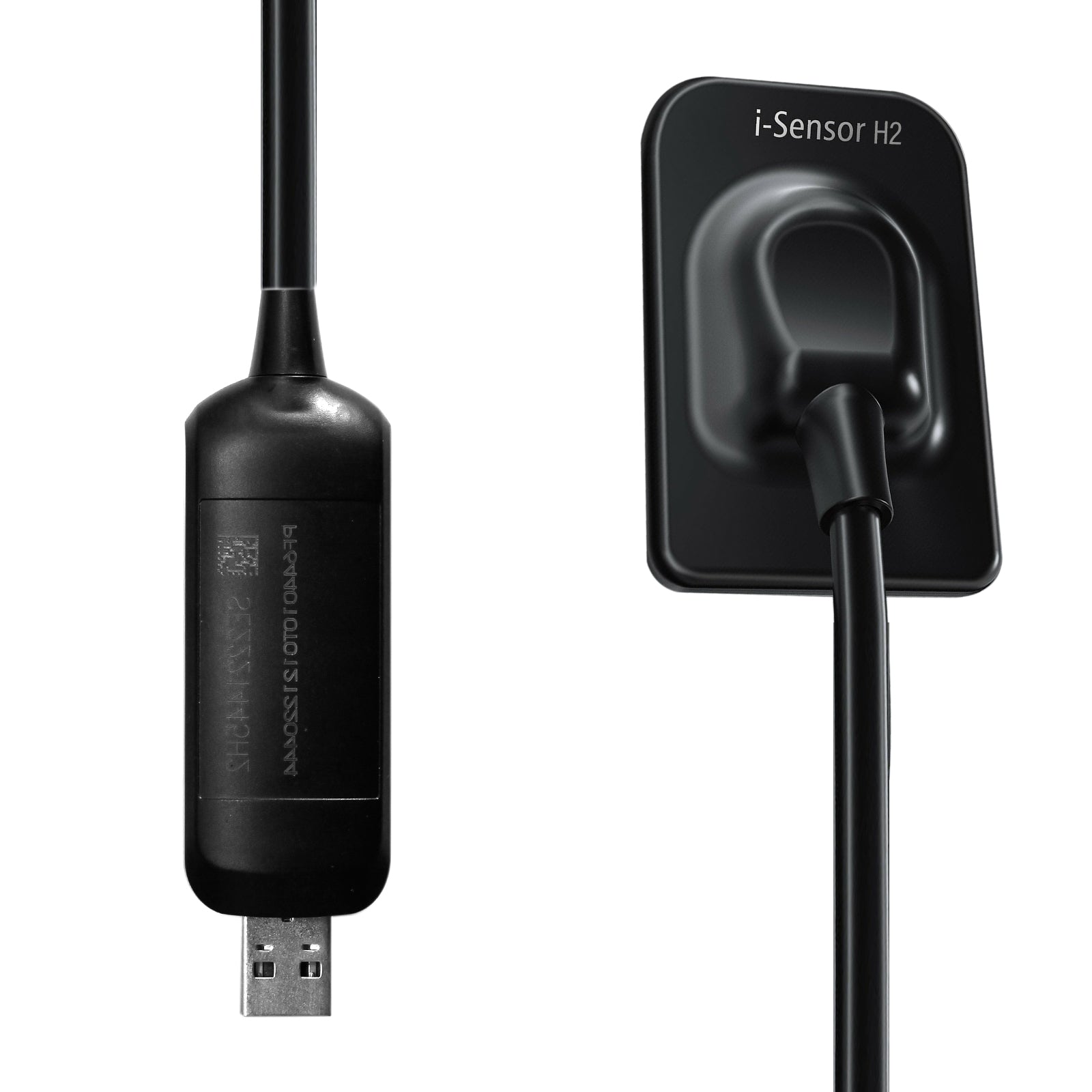

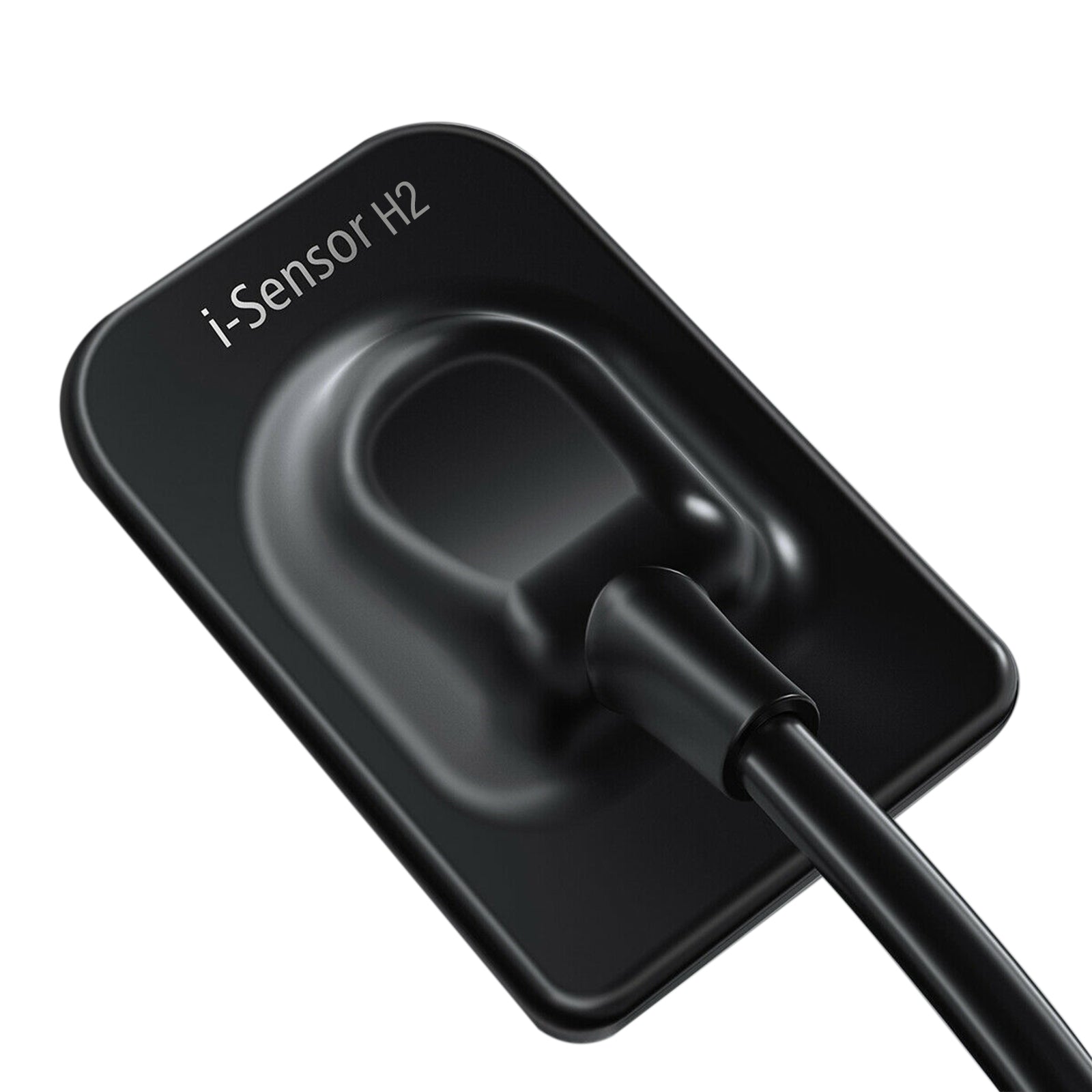

Woodpecker Dental i-Sensor H1 H2 Digital Intraoral X-Ray RVG Imaging System Ai Dental Free Software &Twain Compatible

Instruction

Download Here

Important Tips Before Purchasing

• TWAIN Compatible. Woodpecker i-Sensor does not have a TWAIN driver, but it can be used with TWAIN if your software support TWAIN or you download it through a different source.

• The most computer (Win 7-Win 11) can run our software, newer than Win 7 should be fine.  But please notice our i-Sensor doesn't compatible with Apple computer, doesn't support Windows XP. You can install on as many computers as you want, and you can share on the different computer just make sure you have one computer is always on and working as a server will be fine, the images can be emailed.

• Woodpecker i-Sensor only comes with one USB driver, which contains TWO parts: Sensor Software and CorrectFile.

• Notice: JMU Dental is dedicated to providing premium service to our customers. Currently, we are providing one hour free technical support. This service can be either online remote or in person around Fullerton, California are. Please call 909-686-0000 for more information.

Features

• C Mos technology.
• Curved edges to avoid patient injury.
• Highly flexible cable, up to 2.9m (114") long.
• It has a Twain option, and the server function.
• Ultra-high image resolution- 25lp/mm theoretical resolution, which can provide doctors with clearer diagnostic images.
• Durable and reliable: 80000+ bending test & IP68 protection rating.
• Smart and powerful software. Now there is no limit for computers connected to the software license. Easy-to-use software, with workflow efficiency improvements.
• I Sensor RVG serves as a highly effective aid throughout the diagnosis, treatment, and treatment planning process.
• As a powerful, centralized imaging hub for all patient images, Woodpecker i-Sensor manages all digital images, including intra- and extra-oral radiographs, as well as intra- and extra-oral photographs.
• An ideal solution for intraoral imaging needs, the easy-to-use sensor allows users to capture exceptional images quickly and easily.
• The trusted brand of Woodpecker now adds RVG line and service to its Imaging Portfolio which is available on dentbay.com, Woodpecker has built a stellar reputation as brand whose products extend from a strong lineage of imaging excellence and robust performance.

Technical Parameters

Model	Woodpecker Digital X-Ray i-Sensor H1	Woodpecker Digital X-Ray i-Sensor H2
Power adapter input	5V/USB interface	5V/USB interface
Detector Technology	APS CMOS	APS CMOS
Scintillator	Csl	Csl
True Resolution	20lp/mm	20lp/mm
Theoretical Resolution	25lp/mm	25lp/mm
AD Conversion (Bit)	16	16
Pixel size	20μm	20μm
Data Interface	USB 2.0	USB 2.0
Protection	IP68	IP68
Pixel matrix size	1000*1500mm	1300*1800mm
Effective area	20*30mm	26*36mm
Weight	118g	158g
Mechanical Size	25.0*36.8*4.4mm	30.4*41.9*4.4mm
Target users	Children	Adult

Packing List

• 1 x Rvg i Sensor
• 1 x Sensor fixer
• 1 x Disposable protective bag
• 1 x Sensor silicone sleeve
• 1 x U disk
• 2 x Fixing screw
• 2 x Rubber Stopper
• 1 x Anti-counterfeiting query label
• 1 x Qualified certificate
• 1 x Warranty card
• 1 x Instruction manual
• 1 x Packing list

Warranty

Since the date of sales, the main unit can enjoy warranty for TWO years with warranty card.
