Woodpecker Curing Light O-Light II O-Light Max LED

Original Woodpecker Dental Cordless O-Light O-Light II O-Light Max LED Curing Light Lamp. 360 Degree Rotary 1 Sec Curing 2mm Reins. 3000mW/cm2 High Light Intensity. Plastic/ Metal Head. 8-10mm Illumination Range. Two/ Three Working Modes. Ergonomics Design. High Rechargeable Lithium Battery. FDA Approved. One Year Warranty.

Features

• FDA and CE0197 Certificated.
• 5W high power blue light LED.
• Cure 2mm reins in one second, go quicker than ever.
• 360 degree rotary head, extend the possibility.
• Ergonomics design, optimize the hand-grip use.
• It's a high tech dental equipment and has a perfect quality assurance system.
• Constant light intensity: The solidification effect is not affected by the consumption of remaining power.
• Large Capacity battery: A full charge can be used for more than 400 times continuously under 10s working time mode.
• Woodpecker rechargeable lithium battery had received CB certification. The batteries refuse explosion.

Technical Parameter

Item	O-Light LED	O-Light Max	O LIGHT II
Material	Plastic	Plastic + Metal Head	Plastic + Metal Head
Adapter input	AC 100~240V, 50Hz/60Hz	AC 100~240V, 50Hz/60Hz	AC 100~240V, 50Hz/60Hz
Adapter output	DC 5V1A	DC 5V1A	DC 5V1A
Battery	ICR 18490, 1400mAh	ICR 18490, 1400mAh	18500, 2000mAh
Wave length	420nm~480nm	385nm~515nm (Wide Spectrum)	385nm~515nm (Wide Spectrum)
Illumination range	Diameter 8mm	Diameter 10mm	Diameter 10mm
Light intensity	1000mW/cm2-2500mW/cm2	1000mW/cm2-2500mW/cm2	1000mW/cm2-3000mW/cm2
Net weight	0.6lb (259g)	0.6lb (259g)	0.6lb (259g)
Dimension	10.6"×1"×1.25" (268.8mm ×26.1mm ×31.8mm)	10.6"×1"×1.25" (268.8mm ×26.1mm ×31.8mm)	10.6"×1"×1.25" (268.8mm ×26.1mm ×31.8mm)

Working Modes

TWO Modes：（O-Light O-Light Max）

• HIGH Mode: screen shows P1, Press the time button to select of time which could be 1 and 3 seconds.Its output light intensity is about 2300 mW/cm2-2500 mW/cm2.
• NORMAL Mode: screen shows P2, Press the time button to select of time which could be 5,10 ,15and 20 seconds.Its output light intensity is about 1000 mW/cm2-1200 mW/cm2.

THREE Modes：（O-Light II）

• Turbo Power Mode: screen shows P0, press the time button to select of time which could be 1 and 3 seconds. Its output light intensity is about 2700-3000 mW/cm2
• High Power Mode: screen shows P1, press the time button to select of time which could be 3 and 5 seconds. Its output light intensity is about 1800-2000 mW/cm2
• Standard Power Mode: screen shows P2, press the time button to select of time which could be 5, 10, 15 and 20 seconds. Its output light intensity is about 1000-1200 mW/cm2.

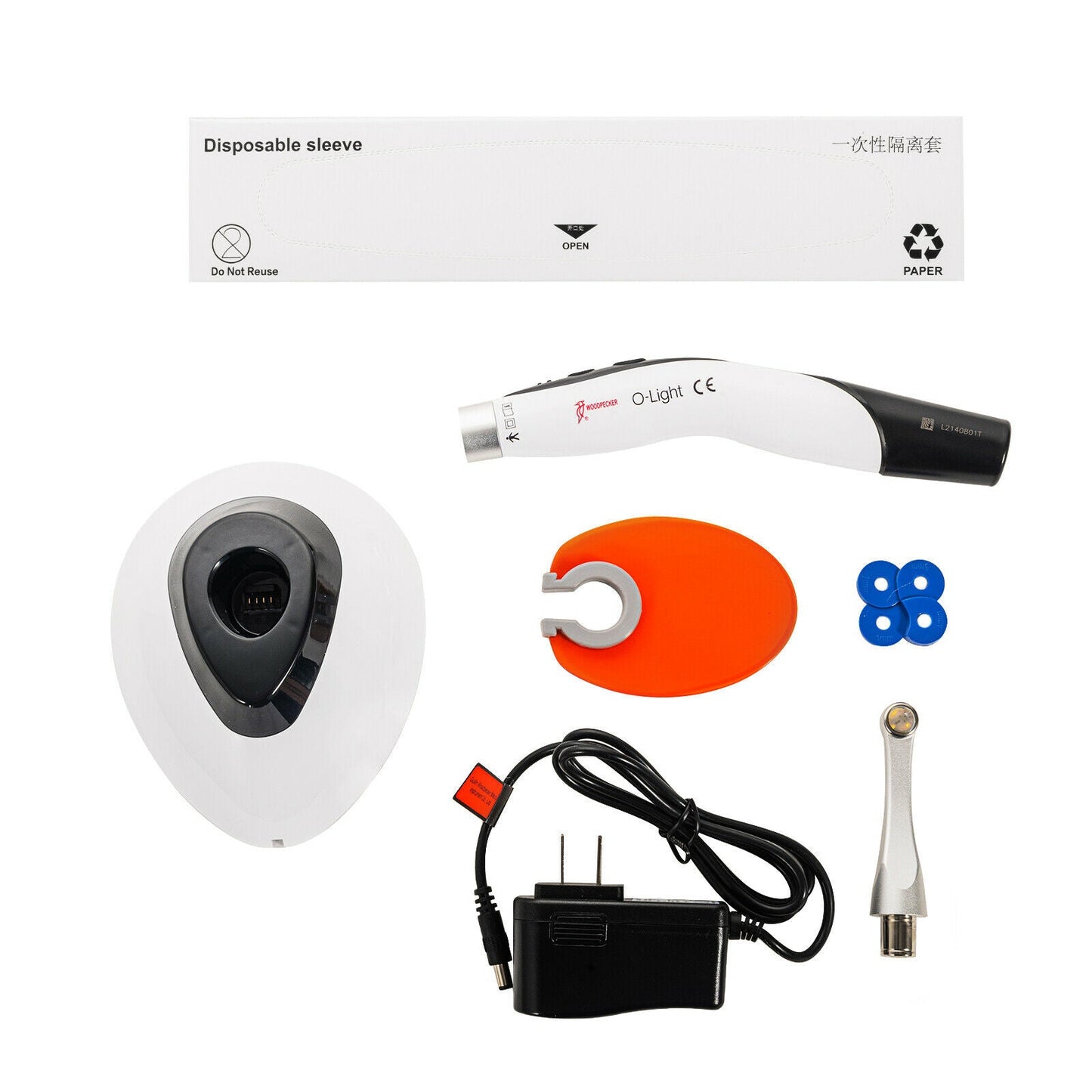

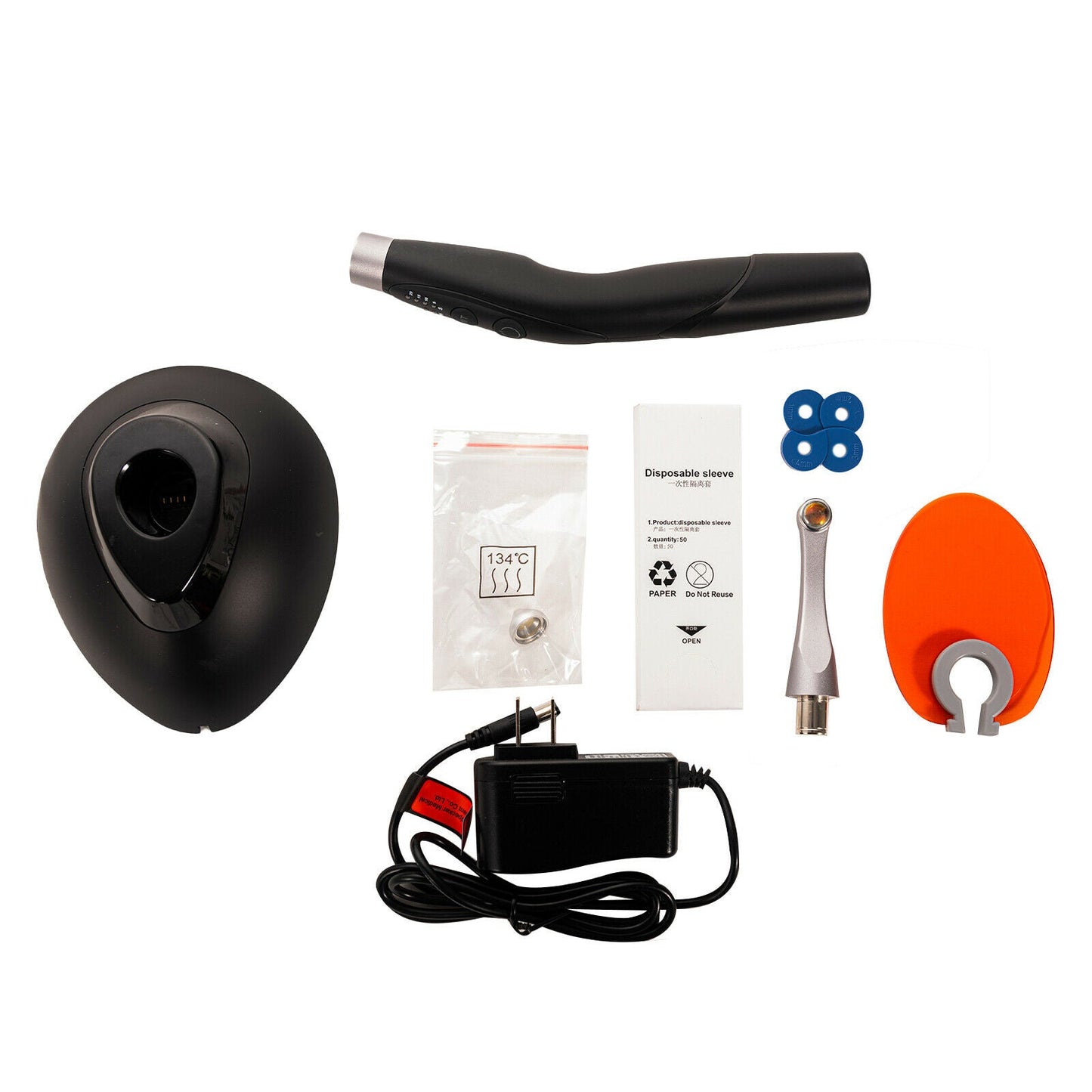

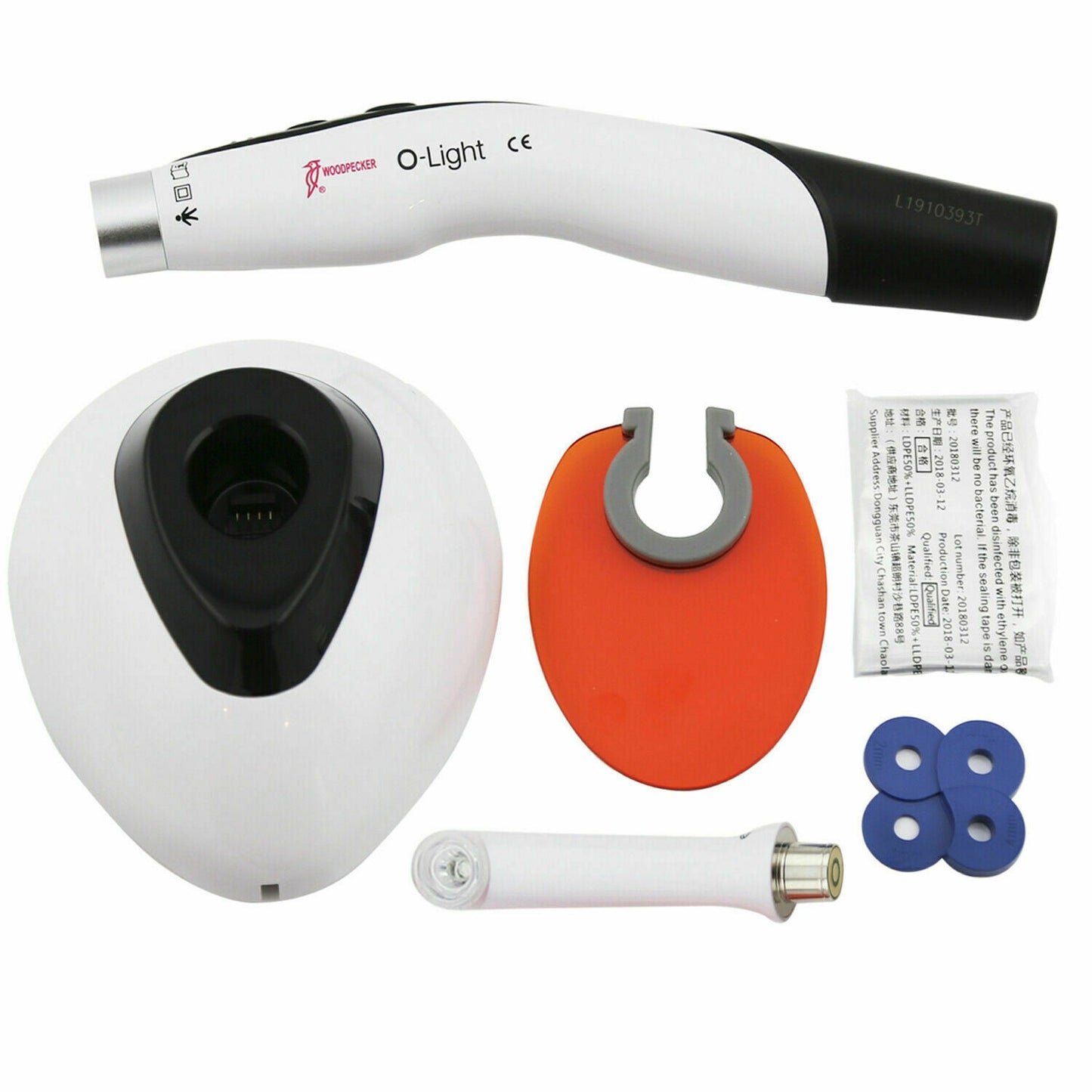

Packing List

• Main unit of the LED x1
• Light hoodx1
• Adapterx1
• Bathymeterx1
• Pedestal chargerx1
• Disposable sleevex1
• Transparent coverx5
• Instruction manualx1
• Qualified certificatex1

Warranty

One year's free repair for the whole unit from the date of purchase. Lifetime maintenance.
